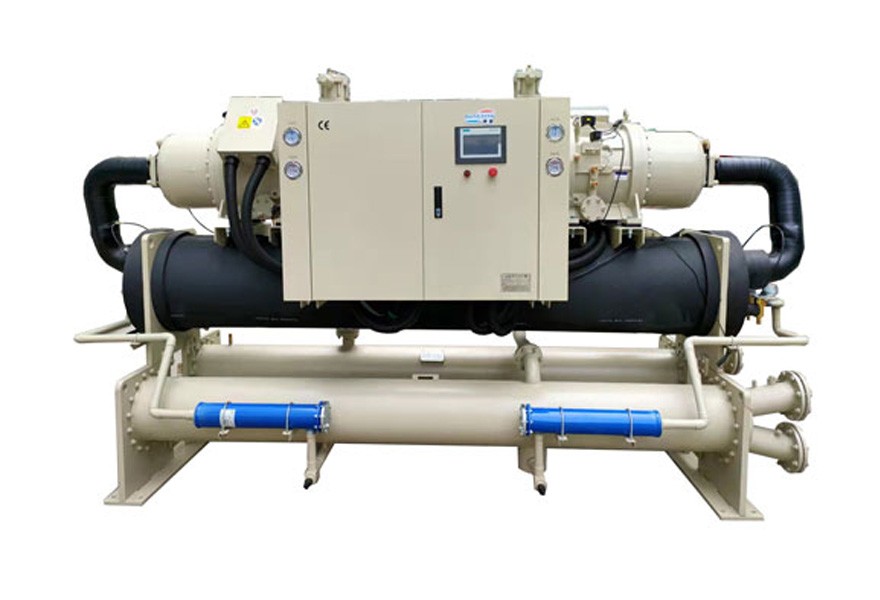

Can be customized acid-proof, anti-corrosion, frequency conversion, explosion-proof. Selected imported brand-name semi-hermetic screw compressors and semi-hermetic reciprocating compressors. Good performance and low noise. According to customer needs and the size of the cold tonnage, a single machine or a combination of multiple machines is used. The compressor can automatically alternate operation according to load changes, balance the operating hours of each compressor, and greatly extend the service life of the chiller.

Features:

compressor:

Selected imported brand-name semi-hermetic screw compressors and semi-hermetic reciprocating compressors.

Good performance and low noise.

According to customer needs and the size of the cold tonnage, a single machine or a combination of multiple machines is used.

The compressor can automatically alternate operation according to load changes, balance the operating hours of each compressor, and greatly extend the service life of the chiller.

Evaporator:

The copper tube of the evaporator adopts internal and external threaded reinforced tube. The surface of the copper pipe is threaded, the outer surface of the copper pipe is smooth, and the cooling effect is good. The evaporator body is insulated with a 25mm thick PE insulation board, which does not condense and reduces the loss of cooling capacity.

Condenser:

The condenser is made of copper pipes imported from foreign countries and processed into trapezoidal low help pipes to enhance the heat transfer capacity. The surface of the copper pipe is smooth, which reduces the water pressure and is easy to clean and maintain.

protective device:

The protection system devices include: temperature control switch, antifreeze switch, fusible bolt, high and low pressure switch, overload protector, compressor overheat protector, compressor frequent start protector and abnormal indicator light.

Computer control system:

The company has developed a high-intelligence PIC, PC-level computer control system, which can be used for remote monitoring and control, and is simple to operate. The host is connected to the power supply.

The failure rate is low, the safety factor is high, and the installation is simple. System control can be adjusted instantly, intuitive and reliable.

DX stand-alone series performance parameter table Specifications
model			Dx-030WS	DX-040WS	DX-050WS	DX-060WS	DX-080WS	DX-090WS	DX-100WS
using electric			3Φ-50Hz-380V
Cooling capacity		KW	108	145	173	1968	260	293	335
Cooling capacity		Kcal/h	92.880	124.700	148.780	170.280	223.600	251.980	288.100
Power consumption		KW	20.3	27.8	33.2	38.0	51.2	56.5	64.8
Chilled water		m3/h	18	twenty four	29	33	46	50	54
Cooling water volume		m3/h	twenty two	29	35	40	55	62	68
compressor	Type		Semi-hermetic screw type
	Number of units		1
	Start method		Y-1△
	Capacity adjustment	%	0, 25, 50, 100
	input power	KW	twenty two	30	36	41	56	61	70
Frozen oil	Type		SUNISO 4GS
Frozen oil	Filling amount	L	7	7	7	8	12	16	16
Refrigerant	Type		R-22
	way to control		Temperature sensing type external pressure equalizing expansion valve
	Filling amount	kg	18	twenty two	27	32	42	48	54
Evaporator	Type		Shell and tube
Evaporator	Pipe diameter	B	PT 2-1/2"		PT 3"			PT 4"
Condenser	Type		Shell and tube
Condenser	Pipe diameter		PT 5"			PT 4"
protective device			High and bottom pressure switch, antifreeze protection, soluble thrombus/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc.
Dimensions	long	mm	2250	2300	2500	2500	2600	2800	2800
	width	mm	800	800	800	800	850	850	850
	high	mm	1450	1450	1550	1550	1700	1700	1800
Unit weight		kg	1020	1150	1350	1500	1680	1800	1930
